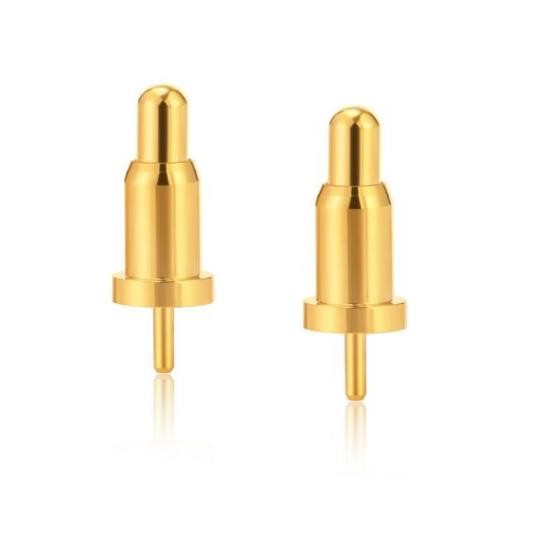

Spring Charging Pogo Pin

A Pogo pin or spring-loaded pin is a type of electrical connector mechanism that is used in many modern electronic applications and in the electronics testing industry. They are used for their improved durability over other electrical contacts, and the resilience of their electrical connection to mechanical shock and vibration. The pogo pin usually takes the form of a slender cylinder containing two sharp, spring-loaded pins. Pressed between two electronic circuits, the sharp points at each end of the pogo pin make secure contacts with the two circuits and thereby connect them together. This allows for a physical connection to be made without the need for solder or other conductive materials.

Pogo pins are used in many modern electronic applications and in the electronics testing industry. Some examples of electronic applications that use Pogo pins include blood pressure monitors, glucose meters, heart rate monitors, infusion pumps, medical sensors, guidance systems, missile launch systems, spacecraft control systems.

Pogo pins have several benefits over other electrical contacts, including greater compression and more stable contact, which makes them more reliable. They can effectively save space on the PCB board. The contact point is more stable and has a longer service life. Pogo pins are less likely to damage the device they are connecting to than other types of connectors. They are small, rugged, and can be used in high-density applications. Pogo pins combine both advantages of being big and stable, or small and fragile in one product.

Pogo pins can only carry a limited amount of current, which may not be sufficient for some applications. The small size of pogo pins means there is only limited space available for connections between two PCBs. This can make routing signals between PCBs more difficult. The accuracy of pogo pin connectors is very high, and the failure rate of production is very high. Small errors in production often lead to unstable connectors as they are not properly touching the surface of their counterpart.

Pogo pins can be used in many modern electronic applications. Here are some examples: Medical devices.Industrial applications,Consumer electronics for charging batteries and PC boards connection with audio and video components,Pogo pins can also play the role of a central conductor and are used to transmit high-frequency RF signals. They can be designed for applications with high frequencies of up to 10Gbps.
